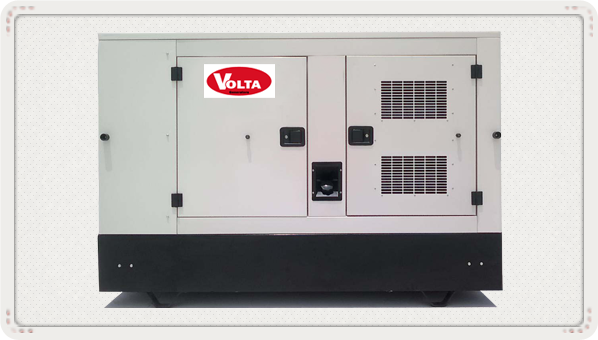

ACOUSTIC ENCLOSURE

Specifications:

• Base rail with integral fuel tank is provided with drain plug, air vent, inlet and outlet connection, level indicator, manhole etc. Integral fuel tank of 8hrs operation.
• Battery stand with proper clamps.
• Designed to have optimum serviceability. New air inlet louvers designed for homogenous cooling of the canopies interiors and specially designed to operate at rated load even at 50 deg. C enclosure temp.
• Acoustic enclosure body made from CRCA /GI sheet steel components with polyester powder coating at 200^oC .
• Horizontally hinged side doors.
• Pressure handle locks.
• Front and rear "lift-off" access panels.
• Emergency stop button mounted on canopy exterior.
• Exhaust silencing system hidden inside the enclosure and enclosed for operator safety Security and Safety.
• Acrylic control panel viewing window in a lockable access door.
• Zinc pasivated fasteners, GI rain cap (Made In US).
• All doors have rubber sealant.
• Made on special purpose CNC machines for consistency in quality and workmanship.
• Powder coated for long lasting service life and superior finish and can withstand extreme environment conditions.
• The top single point lifting system ensuring easy transportation.
• Top cover of the canopy enables the operator to fill antifreeze liquid in the radiator.
